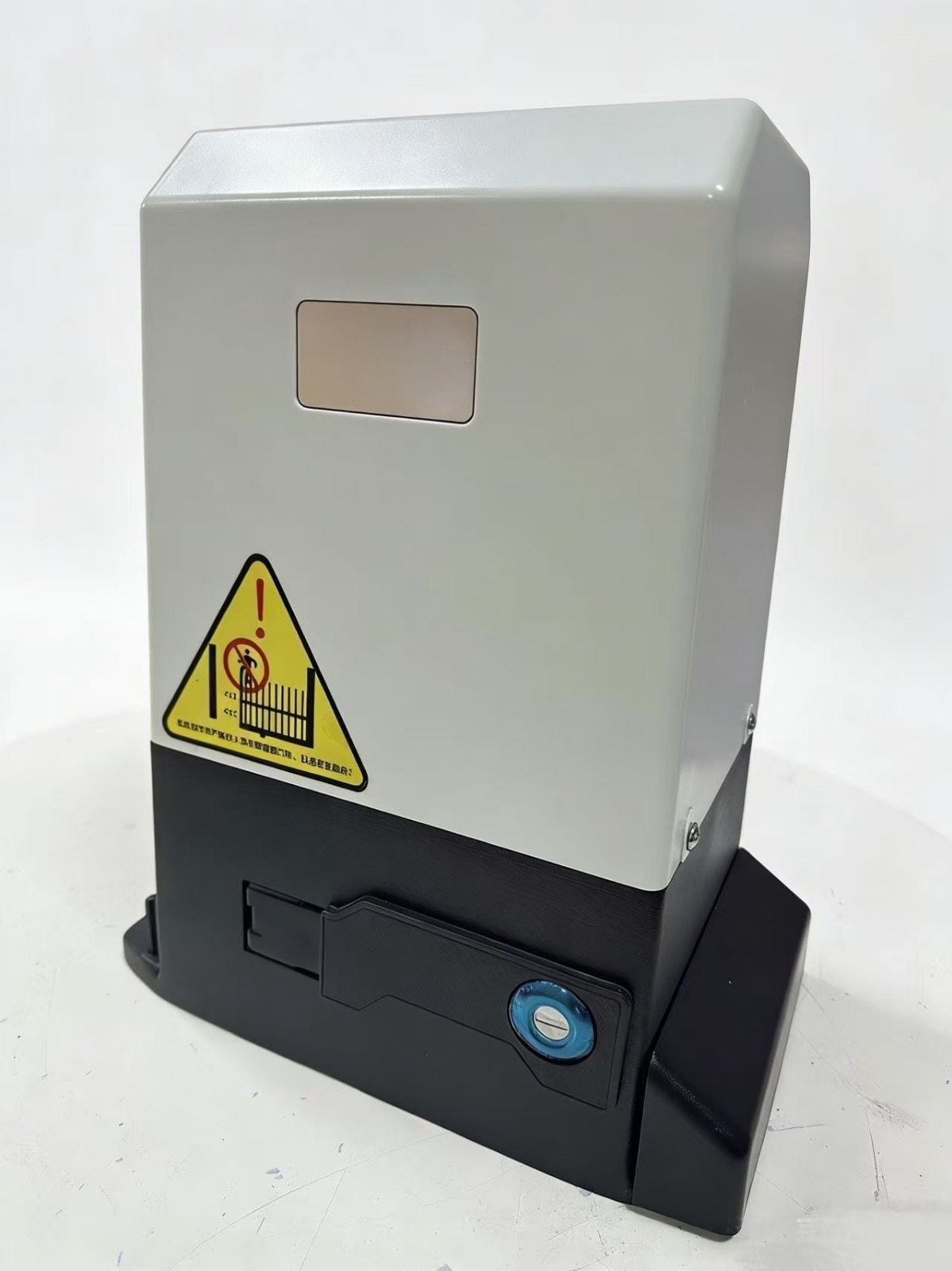

Ka Pai K35
| MODEL | K35 |
|---|---|
| VOLTAGE | AC230/120V |
| RATED POWER | 750W |
| ROTATIONAL SPEED | 1400rpm |
| TORQUE | 35Nm |
| NET WEIGHT | 16.3KG |
| TEMPERATURE | -45°C ~ +65°C |
| WATERPROOF RATING | IP44 |
| RUNNING SPEED | 12m/min |
| MAXIMUM DOOR WEIGHT | <2000KG |
| OUTER BOX SIZE | 320°280°375mm |
| MOTOR BOX | 330°275°160mm |
| ACCESSORIES | Door opener *1 / Clutch key *2 / Limit magnet *2 / Positioning screw / Mounting plate / Instruction manual |
