Description

Specifications

Operating Frequency: 13.56 MHz

Communication Protocol Compliance: IS014443A

Memory Type: 1K EEPROM

Number of Applications: Unlimited (within memory constraints)

Dimension: 40.9*32.5mm(±0.5mm)

Thickness: 4.3 (± 0.02mm)

Material: PVC

Working Humidity: 10- 90% Non-Condensing

Working Temperature:-20℃ ~ 50℃

Storage Temperature:-20℃ ~ 50℃ (-40℉ ~185℉)

Data Retention: > 10 years

Write Endurance: Min. 100,000 cycles

Environmental Compliance: RoHS, China RoHS, REACH, Halogen Free

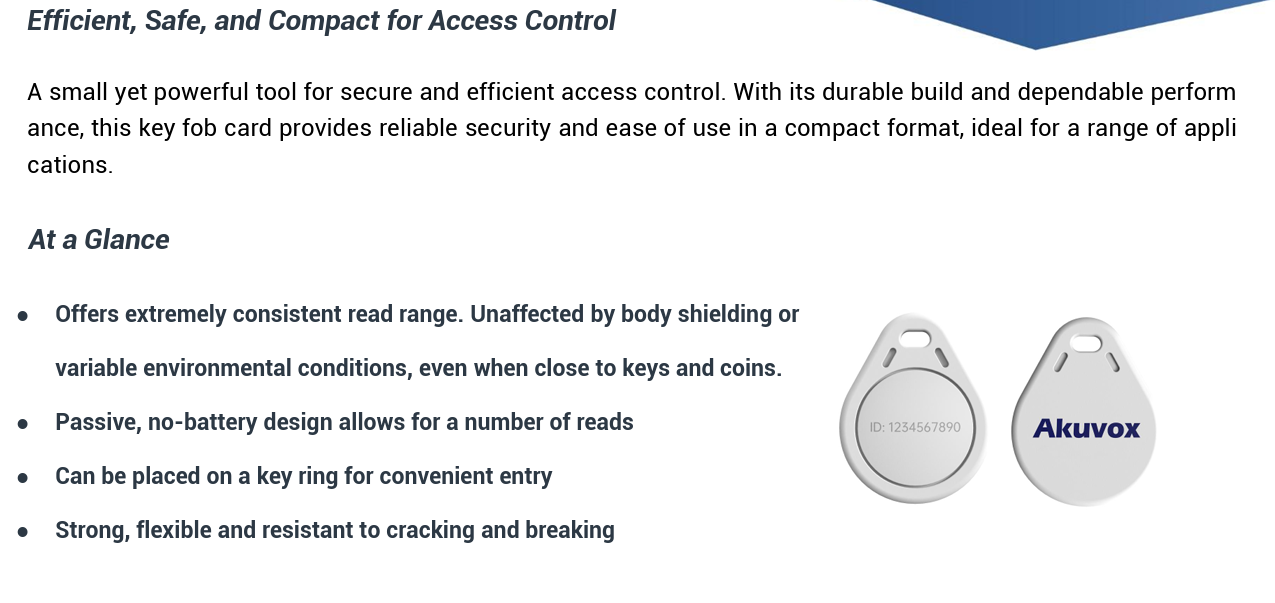

Akuvox Fudan F08 Keyfob Datasheet
