Description

Supermicro Mini-Tower / Cube – SYS-521R-T, Intel Xeon E-2434, 32GB DDR5 ECC, 4
hot-swap 3.5″ SATA drive bays, 2x 2.5″ Fixed SATA, Onboard M.2 PCIe 4.0 2280 for
O/S
Processor/CPU: Intel Xeon E-2434, 4-Cores, 8 Threads, 3.40GHz Base, Max Turbo
5.00 GHz, 12M Cache, 55W TDP
Memory/RAM: 32GB ECC UDIMM DDR5-4800 MHz (2x 16GB) – 2 Slots / 64GB Max
Supported
O/S SSD: Micron 7450 PRO 480GB M.2 NVMe Internal SSD, PLP / Power Loss
Protection, Read-Intensive, 1 Drive Write per Day,

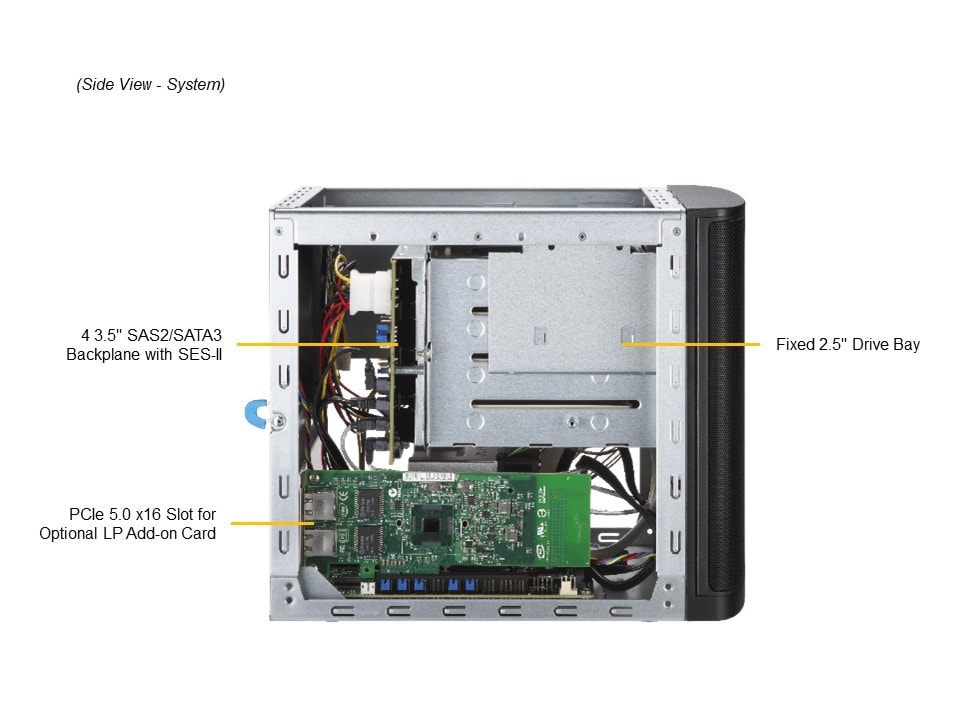

PCIe 5.0 x 16 slot (Optional Graphics Card supported, RTX A400 4GB / RTX A1000
8GB)
Dual LAN ports, 1 GbE and dedicated IPMI (remote management)
12cm PWM quiet exhaust fan
350W 80PLUS Gold Power Supply
Trusted Platform Module (TPM) 2.0

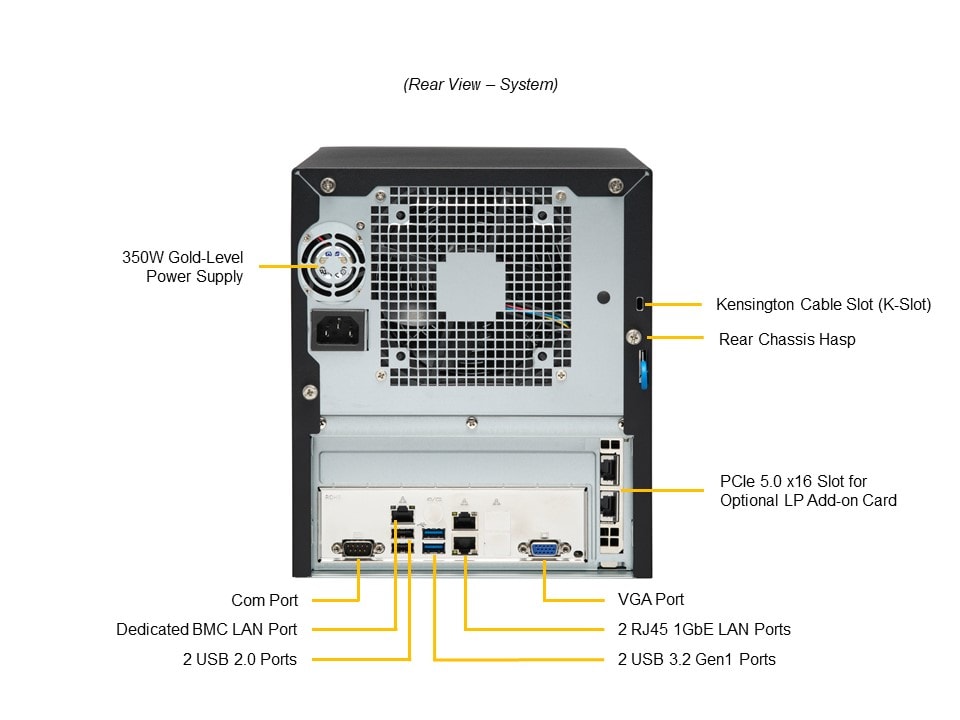

Ports:
USB:
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)

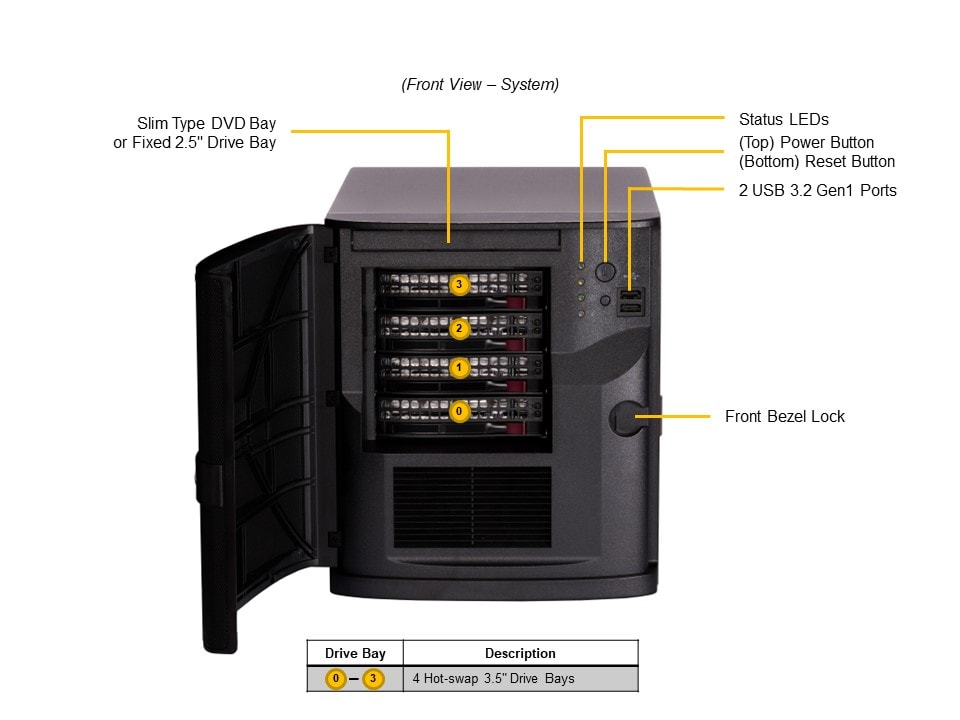

2 USB 3.2 Gen1 Type-A ports(front)
Video: 1 VGA port
Height: 9.45″ (240.03 mm)
Width: 8.27″ (210.06 mm)
Depth: 11″ (279.4 mm)
Warranty: 3 Years

3.5″ Hard Drives – SATA Only – 4x Supported.
SATA 6Gb/s – 7200 RPM – 256MB 512e/4kn
Seagate Enterprise Capacity (Exos) 6TB – $340+
Seagate Enterprise Capacity (Exos) 8TB – $352+
SATA 6Gb/s – 7200 RPM – 256MB – 512e/4kn – Helium
Seagate Enterprise Capacity (Exos) 10TB – $500+
Seagate Enterprise Capacity (Exos) 12TB – $515+
Seagate Enterprise Capacity (Exos) 16TB – $628+
Seagate Enterprise Capacity (Exos) 20TB – $765+
SATA 6Gb/s – 7200 RPM – 512MB – 512e/4kn – Helium
Seagate Enterprise Capacity (Exos) 22TB – $775+
Seagate Enterprise Capacity (Exos) 24TB – $899+

SSD Options – 2.5″ SATA – Supports 2x. Can be RAID1. i.e. for Live Database
(Milestone)
SATA 6Gb/s – 550MB/s Read – 520MB/s Write – 1DWPD – Power Loss Data Protection
– 7mm – 5 Years Warranty
Samsung PM893 960GB 2.5″ Enterprise SSD $360+
Samsung PM893 1.9 TB 2.5″ Enterprise SSD $600+
Samsung PM893 3.8TB 2.5″ Enterprise SSD $1290+
Samsung PM893 7.6TB 2.5″ Enterprise SSD $2205+

NVIDIA RTX A400 4GB Professional Workstation Graphics Card
4x Mini Display Port – Single Slot
329.00
NVIDIA RTX A1000 8GB GDDR6 WorkStation Graphics Card
4x Mini DisplayPort – Single slot
749.00
