Akubela AB-RSAC-C1-R8 RS485 Switch Actuator I/O Device
The RSAC-C1-R8 unit consist of …..
- 1 x Akubela Switch Actuator Alarm Panel (Din Mount)
8 Channels Switched Outputs (resistive load)
8 I/O inputs
8 Channels Signal Input
2 x RS485 BUS
- Description
- Specifications

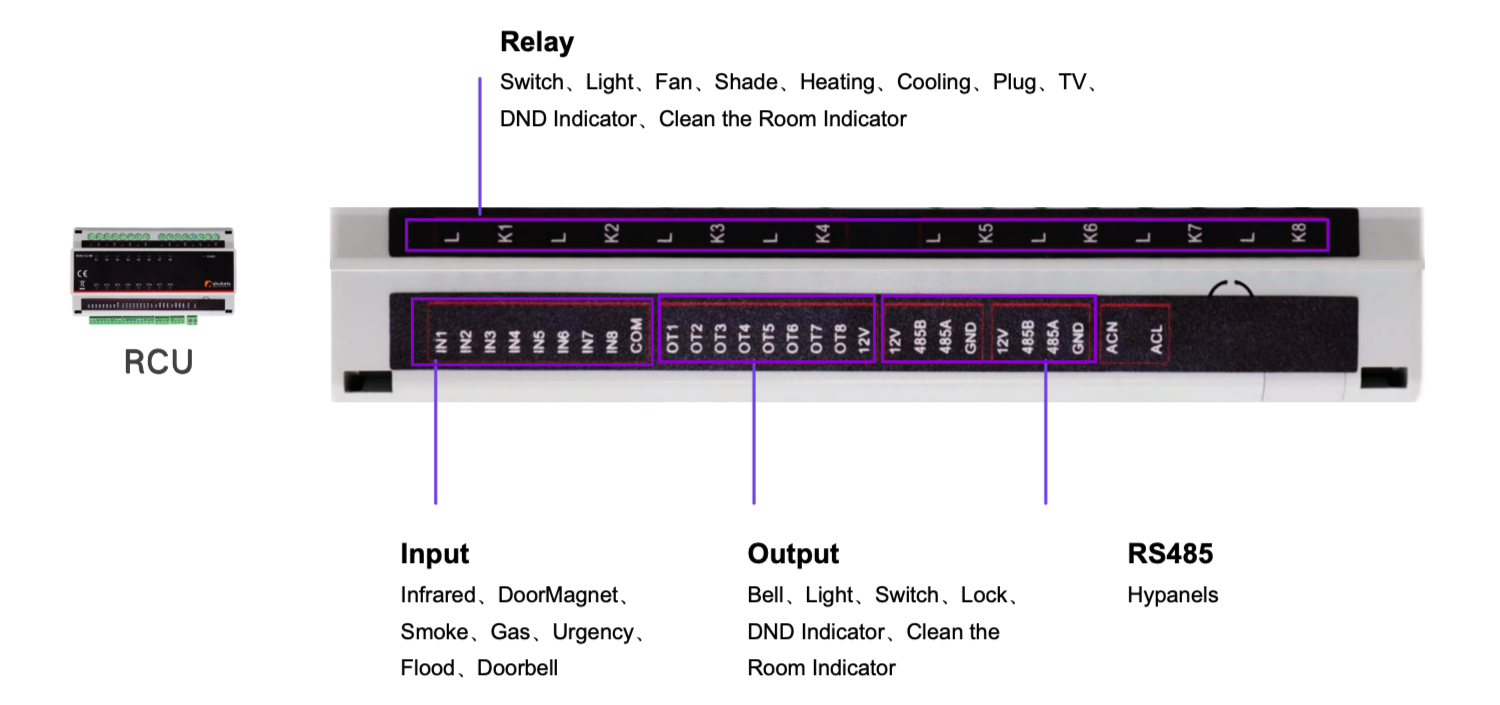

Description
|
Zone |
Port |

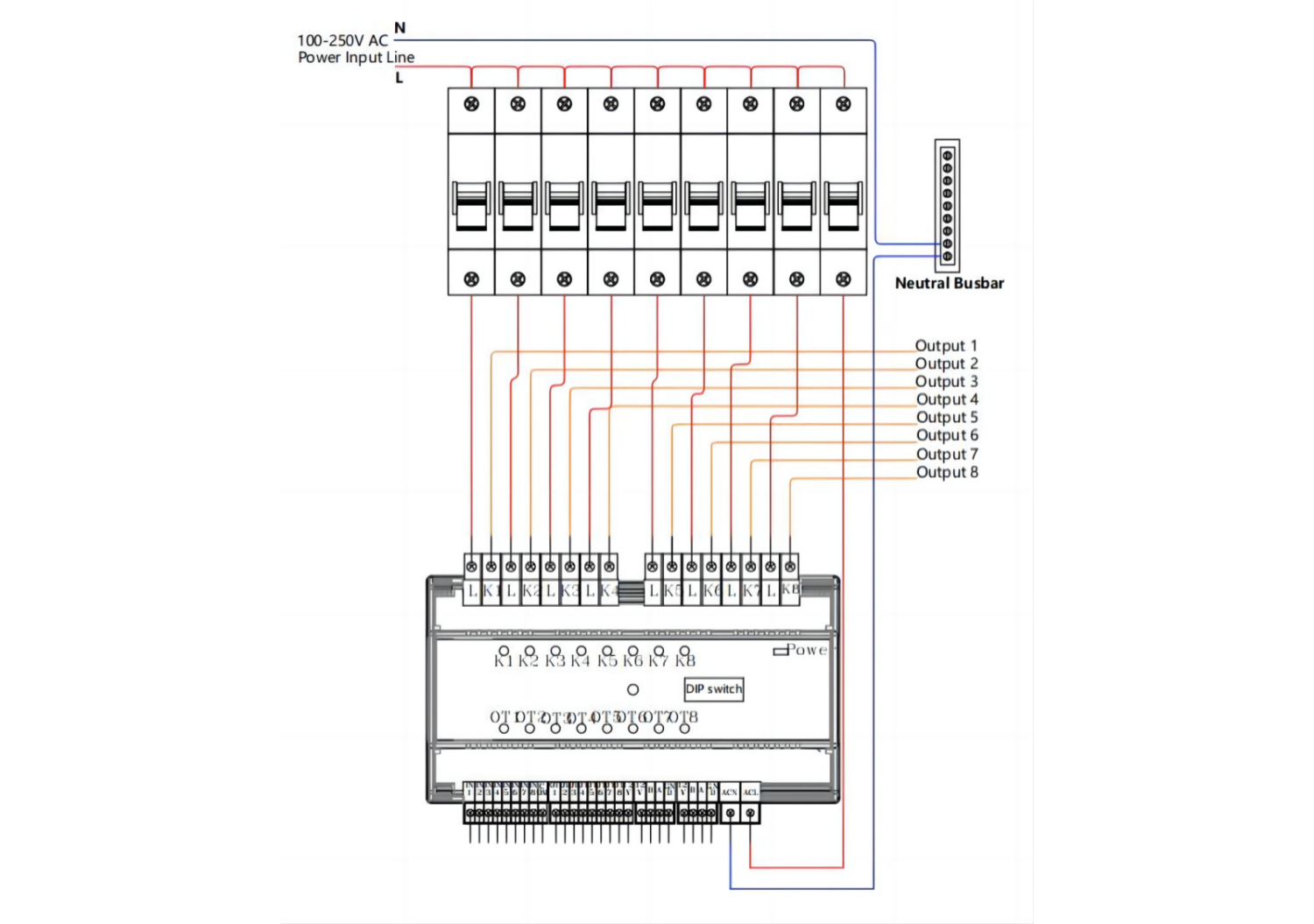

Wiring Instructions |
Remark |
| LINE |
ACL, ACN |
Connect to 100-250VAC Line wire & Neutral wire |
For zero crossing detection |
|
RS485 |
GND, 12V |
Connect to the 12V/2A power adapter |
Provide power to the switch actuator |
|
485A, 485B |
Connect to RS485 devices |
||
|
Output |
OT1 ~ OT8 |
Connect to the negative wire of the output devices |
|
|
12V |
Connect to the positive wire of the output devices |
||
|
Input |
IN1 ~ IN8 |
Connect to one wire of the input devices |
|
|
COM |
Connect to the other wire of the input devices |
||
|
Relay |
K1 ~ K8 |
Connect to the load devices |
|
|
L |
Connect to 100-250VAC Line wire |
-
HyPanel and HyPanel Pro models with RS485 terminals and the following firmware versions support RS485 switch actuator configuration:
Support Link to Config Guide
